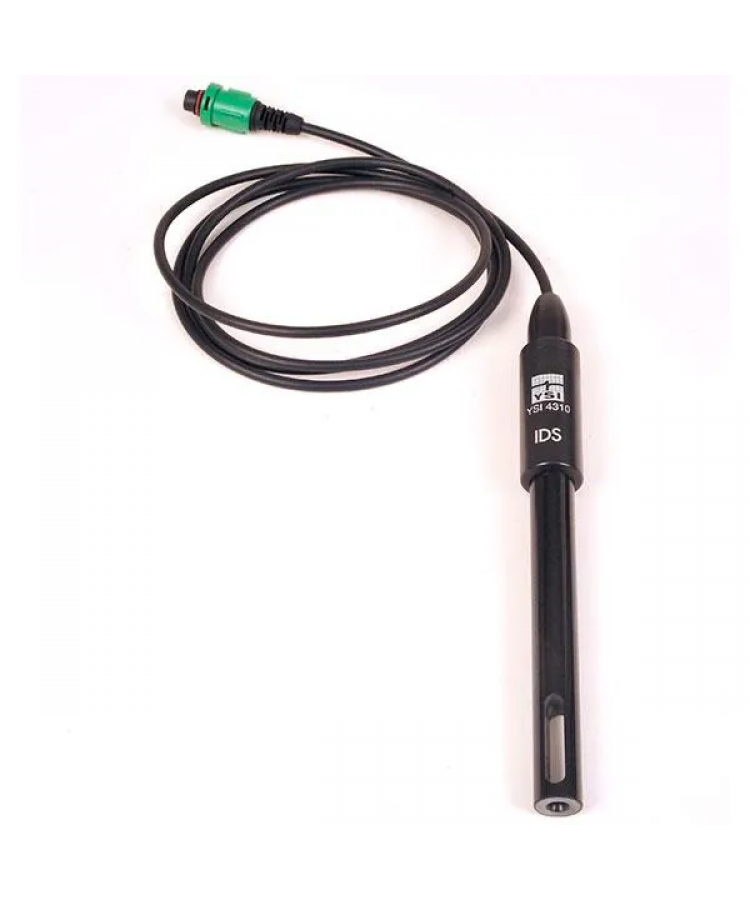

YSI MultiLab IDS 4310 İletkenlik ve Sıcaklık Sensörü

YSI MultiLab için IDS 4310 dijital iletkenlik/sıcaklık probu. Epoksi gövde, 4 grafit elektrot ve 1,5 metre kablo içerir. 4310 probu yalnızca 1.413 uS/cm iletkenlik standardı (060906) ile kalibre edilebilir.

IDS sensörleri, benzersiz seri numaralarını ve kalibrasyon verilerini otomatik olarak saklar. Ayrıca ölçüm sinyalini dijital olarak da işlerler. IDS sensörleri cihazdan cihaza taşınabilir ve kalibrasyon verilerini koruyabilir ve bu bilgileri yeni cihaza iletebilir.

IDS 4310 digital conductivity/temperature probe for the YSI MultiLab. Features an epoxy body, 4-graphite electrodes, and a 1.5 meter cable. The 4310 probe can only be calibrated with a 1,413 uS/cm conductivity standard (060906)

The IDS sensors automatically store their unique serial number and calibration data. In addition, they also digitally process the measurement signal. The IDS sensors can be moved from instrument to instrument and maintain their calibration data and transmit that information to the new instrument.

TECHNICAL DATA

Cell Constant                                     0.475 cm-1 ±1.5 %

Equipment used with                             MultiLab Instruments

Measurement Range                             Conductivity: 1 µS/cm to 2,000 mS/cm | Resistivity: 0.5 Ohm cm to 100 kOhm cm | Salinity: 0.0 to 70.0 ppt | Total Dissolved Solids: 0 to 1,999 mg/L; 0.0 to 199.9 g/L | Temperature: 0 to 100ºC

Minimum Immersion Depth             36 mm

Parameters Measured                     Conductivity, Temperature

Storage Temperature                             0 to 50 °C

Warranty                                             2 years
